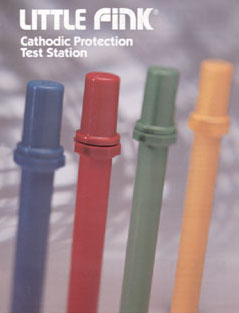

The Little Fink® cathodic protection test station is a 2 or 3 lead version of the Big Fink®. Since 1977 its rugged, maintenance free construction has served pipeline companies worldwide. In stock and ready for immediate delivery from Northtown Company.

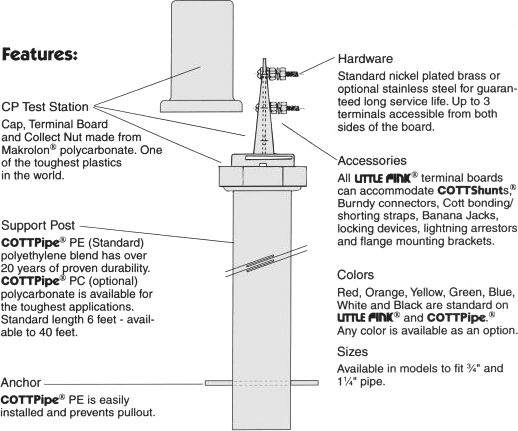

CP Test Station
Cap, Terminal Board and Collect Nut made from Makrolon® polycarbonate. One of the toughest plastics in the world.
Hardware
Standard nickel plated brass or optional stainless steel for guaranteed long service life. Up to 3 terminals accessible from both sides of the board.
Accessories
All Little Fink® terminal boards can accommodate COTTShunts®, Burndy connectors, Cott bonding/shorting straps, Banana Jacks, ZAPGard®, locking devices, lightning arrestors and flange mounting brackets.
Colors
Red, Orange, Yellow, Green, Blue, White and Black are standard on Little Fink® and COTTPipe®. Any color is available as an option.
Support Post
COTTPipe® PE (standard) polyethylene has over 20 years of proven durability. COTTPipe® PC (optional) polycarbonate is available for the toughest applications. Standard length 6 feet, available to 40 feet.
Sizes
Available in models to fit 3/4" and 1-1/4" pipe
Anchor
COTTPipe® PE is easily installed and prevents pullout. |
