Cathodic Protection Test Stations

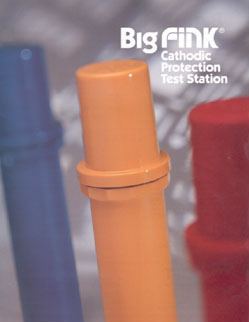

Big Fink® CP Test Station

The Big Fink® cathodic protection test station is a field proven, high strength, maintenance free terminal for monitoring electric currents and potentials. Since 1976 the Big Fink® CP test station has been utilized worldwide by gas, oil, chemical and water pipeline companies. The Big Fink® CP Test Station is In stock and ready for immediate delivery from Northtown Company.

CP Test Station
Cap, Terminal Board and Collect Nut made from Makrolon® polycarbonate. One of the toughest plastics in the world.

Hardware
Standard nickel plated brass or optional stainless steel for guaranteed long service life. Up to 11 terminals accessible from both sides of the board.

Accessories
All Big Fink® terminal boards can accommodate COTTShunts®, Slide Resistors, COTTMeters® (Volt or Amp) Burndy connectors, Cott bonding/shorting straps, Banana Jacks, ZAPGard® , locking devices, lightning arrestors and flange mounting brackets.

Colors
Red, Orange, Yellow, Green, Blue, White and Black are standard on Big Fink® and COTTPipe®. Any color is available as an option.

Support Post
COTTPipe® PE (standard) polyethylene has over 20 years of proven durability. COTTPipe® PC (optional) polycarbonate is available for the toughest applications. Standard length 6 feet, available to 40 feet.

Sizes
Available in models to fit 1-1/4", 2" and 3" pipe.

Anchor
COTTPipe® PE is easily installed and prevents pullout.

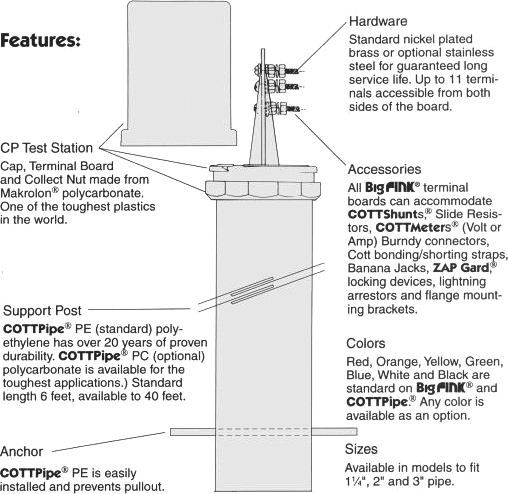

Big Fink® Cathodic Protection Test Station
Illustrated Descriptions
