FLANGE INSULATION KITS
FOR CATHODIC PROTECTION

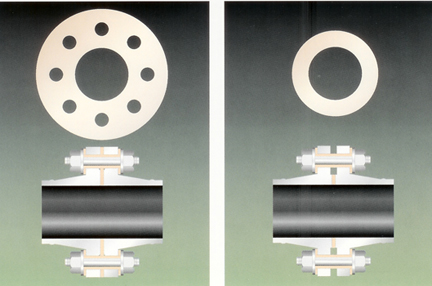

INSULATION KIT TYPES

TYPE E (FULL FACE GASKET)

TYPE F (RING GASKET)
This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.

This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out" the flanges.



TAG-SEAL TYPE D (Gaskets)
This gasket has a sealing element bonded in both faces of the gasket and can be furnished in Type E full face Gasket or Type F ring gasket. TAG-SEAL gives the resilience of an O-ring and maintains constant contact with the flange face. Gaskets are offered in any of the materials listed on specification sheet with Nitrile, Viton, Silicone, Teflon or expanded Teflon as the sealing element. To fit RTJ flanges, we offer CE and LE grade phenolic and glass filled Teflon.

SPECIFICATIONS

GASKETS
  Water Absorbtion Dielectric Max. Operating Temperature
Plain Faced Phenolic 1.10% 500 vpm 225 °F
Neoprene Faced Phenolic 0.45% 500 vpm 175 °F
Other materials available on request G3-G7-G10-G11 JM940-C4401-Garlock 3400-Teflon-Gylon
SLEEVES
  Water Absorbtion Dielectric Max. Operating Temperature
Polyethylene 0.01% 400 vpm 100 °F
Mylar 0.22% 400 vpm 350 °F
Phenolic 2.00% 500 vpm 225 °F
Intergal Minlon 0.9% 450 vpm 300 °F
Teflon 0.01% 600 vpm 350 °F - 450 °F
WASHERS
  Water Absorbtion Dielectric Max. Operating Temperature
Phenolic 1.10% 500 vpm 225 °F
Other materials available on request
ORDER SPECIFICATIONS
To Fit Flange Type _ANSI _MSS SP 44 _AWWA _API 605 _ Other
- E Plain Faced Phenolic Full Face
- EN Neoprene Faced Phenolic Full Face
- ES Tag-Seal Full Face
- F Plain Faced Phenolic Ring
- FN Neoprene Faced Phenolic Ring
- FS Tag-Seal Ring
- X Special Order
- T Telflon
- DW Double Washer Set (two steel and phenolic per bolt hole)
- SW Single Washer Set (one steel and phenolic per bolt hole)
- Other Washers



SEALING ELEMENTS

- Viton Seal
- Silicone Seal
- Nitrile (Buna) Seal
- Teflon Seal

_ Poly Sleeves _ Phenolic Sleeves _ Mylar Sleeves _ With Bolting
_ Quantity _ Pipe Size _ Pressure Class
Order Example: A Flange Insulation Kit with a Neoprene faced phenolic full-faced gasket, double phenolic washer, double steel washers, phenolic sleeves, would be written as: 2" 150# ANSI ENDW - Phenolic
