Split Bolt Connectors

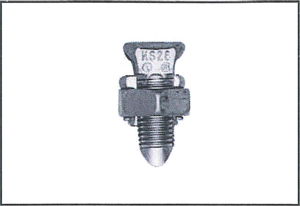

For use on all combinations: Split Bolt
  • Aluminum to aluminum
  • Aluminum to copper
  • Copper to copper

_____Compact, high strength, high copper alloy split-bolt has free-running threads and easy to grip wrench flats. Highly resistant to corrosion and season cracking, these split bolt connectors provide maximum pressure and assures a secure connection on all combinations of run and tap conductors. Type KS-3 accomodates 3 maximum size conductors.

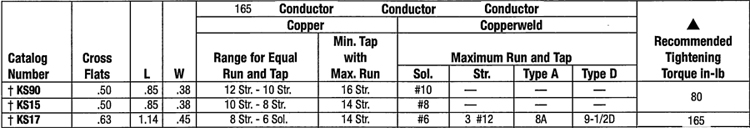

SB Tnail

In addition to UL listed for wire connectors and CSA Certified, these itmes are also rated for direct burial.

Listed torque values are for maximum conductor combinations accomodated.

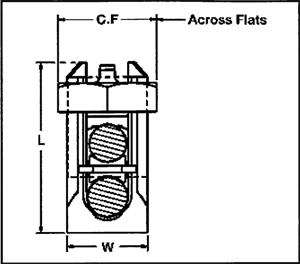

Split Bolt Diagram Standards
