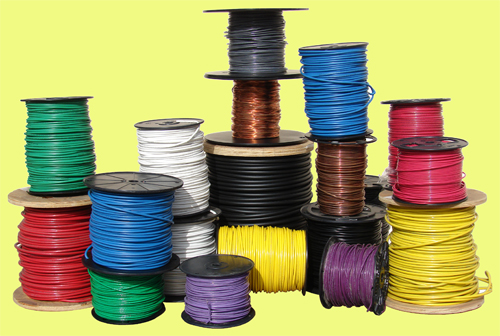

THHN / THWN 600v Solid & Stranded

Type UF Wire 60 C/600v

THHN Wire

Application

General purpose, smallest diameter wire available for new construction or rewiring. Suitable for lighting and power in residential, commercial and industrial installations.

Description

Single Conductor, bare copper, solid or stranded, polyvinyl chloride (pvc) insulation, overall jacket of polyamide nylon.

Specifications

UL listed, Standard 83. Conforms to Federal Specification JC-30-B, ANSI-C 33.80 and requirements of the National Electrical Code. Conductors meet ASTM B3, B8. It is listed by underwriters' Laboratories for use at maximum voltage of 600 volts and maximum conductor temperature of 90 C in dry locations, 75 C in wet locations and 75 C when exposed to oil and gasoline in compliance with Underwriters' Laboratories Standard for Thermoplastic Insulated Wires. It is also recognized as type MTW rated 90 C when utilized with industrial machinery per Article 670. It is also recognized for use as appliance wire rated at 105 C in air and 60 C when exposed to oil. Sizes 14, 12, and 10 AWG are recognized for use as appliance wiring material rated 90 C and 1000 volts. Sizes 14 through 8 AWG stranded are also recognized for use Appliance Wiring Material (AWM) rated 90 C in dry locations, 60 C where exposed to oil or coolants per UL requirements and appliance wire rated at 105 C when exposed to oil and shall comply with the applicable UL requirements. Sizes 1/0 AWG and larger are listed for cable tray (CT). All sizes meet VW-1 Vertical Flame Test.

UF Wire

Application

UL listed Single Conductor Type UF is suitable for use as Sprinkler Irrigation Control Wire for general purpose lighting and power. Construction provides solid or standard soft annealed copper conductor insulated with polyvinyl (PVC) compound that provides excellent abrasion, acid, chemical, oil and moisture resistance.

Description

Single Conductor, copper, solid or stranded, polyvinyl chloride (pvc) Insulation.

Specifications

This specification covers the construction requirements for Underground Feeder Cable, Type UF, for use in accordance with the National Electric Code or operation at a potential of 600 Volts or less and at a temperature of 60 C or less. UL listed. Conductor: Soft drawn bare copper meeting the requirements of ASTM specification B-3 or B-8. Temperature rating: -10 C + 60 C. Insulation: Polyvinyl CHloride, 60 C rated conforming to UL Standards 493 and 83. Surface marked with mfr. Voltage rating, size and type, and UL file number. All cables shall be tested physically and electrically in accordance with UL Standard 493, and 83 (paragraphs 28.1, 29.1, and 29.2).

Product Data Sheet
Product Data Sheet
